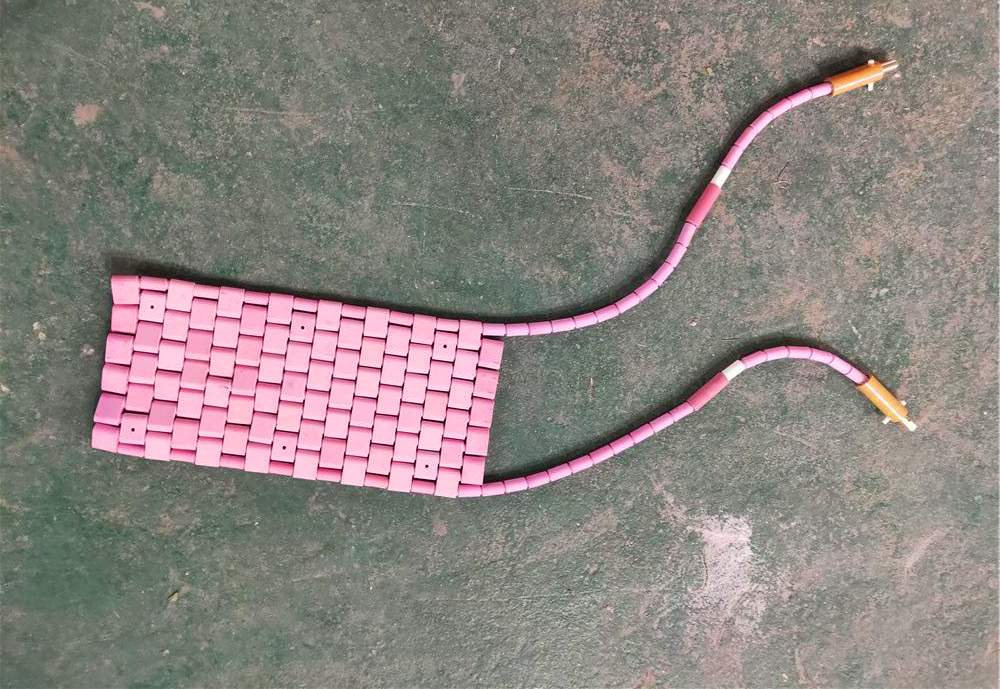

Track type ceramic heaters have demonstrated significant advantages in various aspects of industrial heating, especially in processes such as welding preheating, hydrogen removal treatment, and post weld heat treatment.
Firstly, it has excellent flexibility and bendability. Due to its special splicing process, the heater can flexibly bend in the length direction and closely adhere to various complex geometric surfaces of workpieces, such as pipes, container surfaces, and irregular structures, thereby achieving uniform and efficient heating effects.
Secondly, it has an extremely high working temperature. The maximum working temperature of this type of heater can reach 1050 degrees Celsius, which can fully meet the strict requirements of various high-temperature heat treatment processes.
In terms of performance, it also exhibits characteristics of rapid heating and high thermal efficiency. It can quickly transfer heat directly to the heated workpiece, reducing heat loss. This not only significantly saves energy, but also effectively shortens the production cycle and improves overall work efficiency.
The convenience of installation and maintenance is also a major advantage. Users can easily secure it to workpieces of different shapes using stainless steel zip ties or fastening rings. Even if the internal heating elements are damaged, the external ceramic parts can often be recycled and reused, which reduces long-term maintenance costs.
In terms of security, it has a high degree of safety and reliability. It has a high insulation resistance value in the hot state and excellent electrical shock resistance, ensuring electrical safety in harsh industrial environments.
Finally, it can achieve uniform and precise heating control. The good adhesion between the heater and the workpiece surface ensures the uniformity of heat distribution. Users can achieve automation and precise management of the heating process by connecting the matching temperature control system, thereby ensuring the final product quality.
For safe and efficient use, several precautions should be taken: Do not overlap the heaters to prevent local overheating; Handle with care to avoid damage to ceramic parts; It is necessary to ensure that the heated workpiece is reliably grounded; For insulation and energy conservation, it is recommended to cover the heater with insulation material (such as ceramic fiber blanket); Meanwhile, the working voltage should not exceed 1.05 times the rated voltage.
In terms of selection, track type ceramic heaters usually support customization according to the specific shape, wall thickness, and heat treatment process requirements of the workpiece. Users can provide technical drawings and requirements of the equipment when purchasing.
In summary, track type ceramic heaters have become an ideal choice for many industrial heat treatment applications, especially for complex workpieces before and after welding, due to their core advantages such as flexible design, high temperature tolerance, high efficiency and energy saving, safety and reliability, and precise control. Proper selection and operation of this equipment can significantly improve process quality and production efficiency.
